Wrapped V-Belt Our company takes the laed in successfuily deceloping new generation enhanced-type oil proof triangular beit.Ditterent from the technology triangular beit,it is manufactured using the technology of raw edge V belt. lts principat part is made of oil proof and best heat resistance.compound rubber,and the framework is made of special polyester stiff cord.

Structure No. Name Function Material 1 Outside Fabric Protect the linling tensile member Polyester Cotton Canvas 2 Tensile Member Core material to pass the dynamic force Polyester Wire 3 Top Rubber Maintain the top shape of the adhesive tape NR、CR、SBR 4 Buttom Rubber Support and protect the adhesive force of the tensile member NR、CR、SBR 5 Buttom Rubber Maintain the bottom shape of the adhesive tape NR、CR、SBR Feature The wrapper protects the inner layer,strong durability. Special core rubber used,small elongation and long service life Excellent heat-resistance,oil-proof,and wearing resistance Prevent the generation of the static and keep safe use Small friction coeffion coefficient and large transmission effect during operation Less noise during operation Size of Section Type Top width Beit Thickness Angle Production scope M 10 6 40 15-120 A 13 8 40 18-360 B 17 11 40 22-550 C 22 14 40 33-600 D 32 19 40 80-600 E 38 23 40 110-600

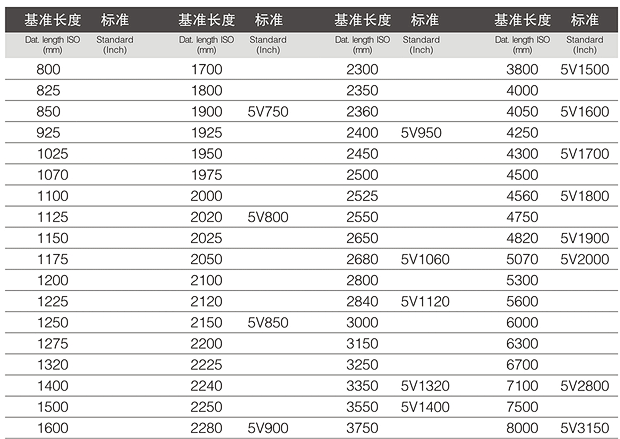

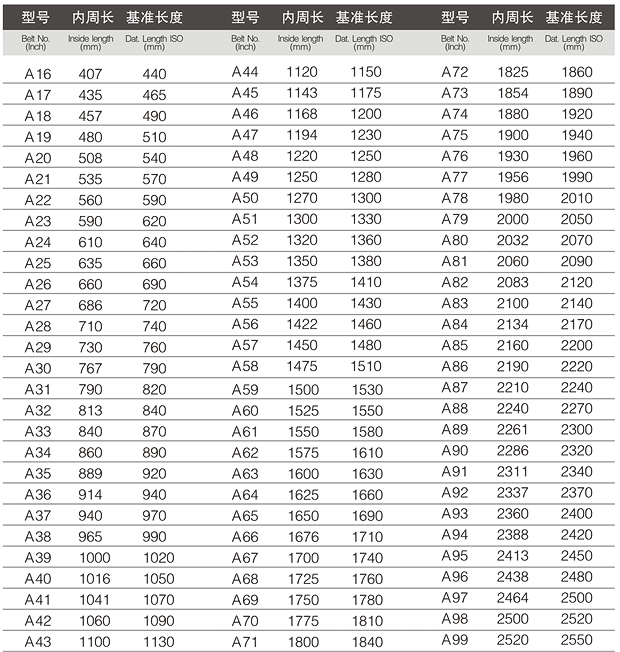

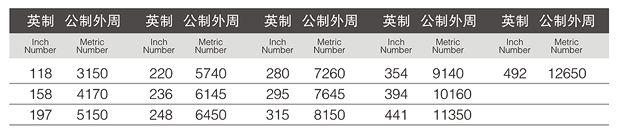

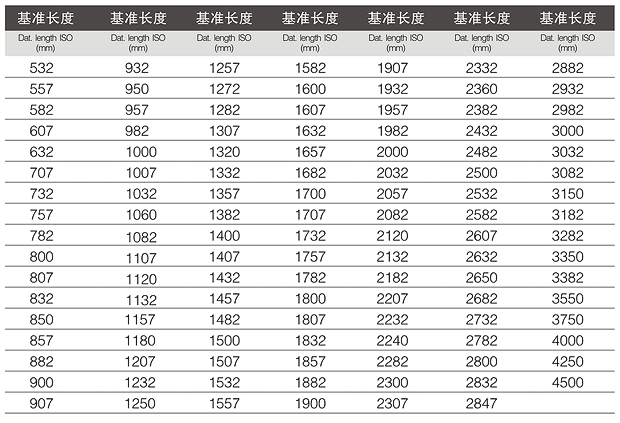

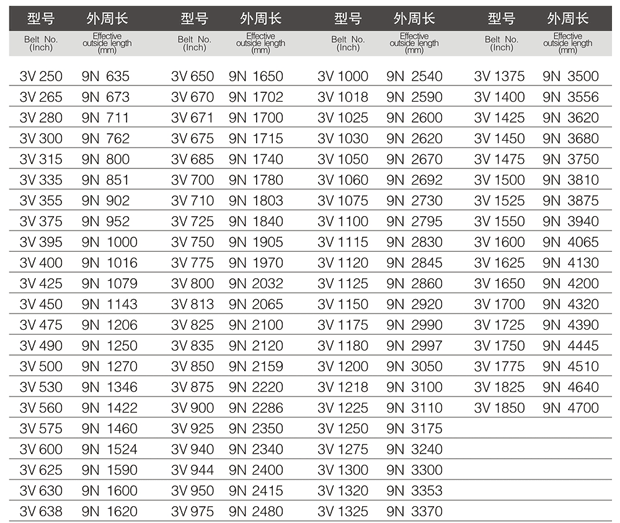

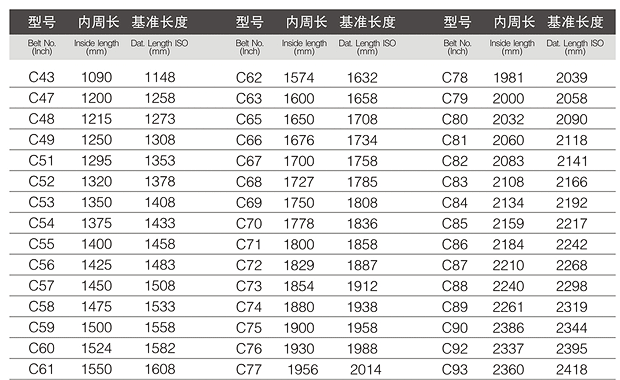

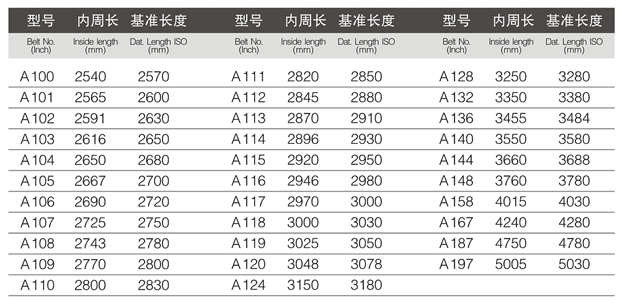

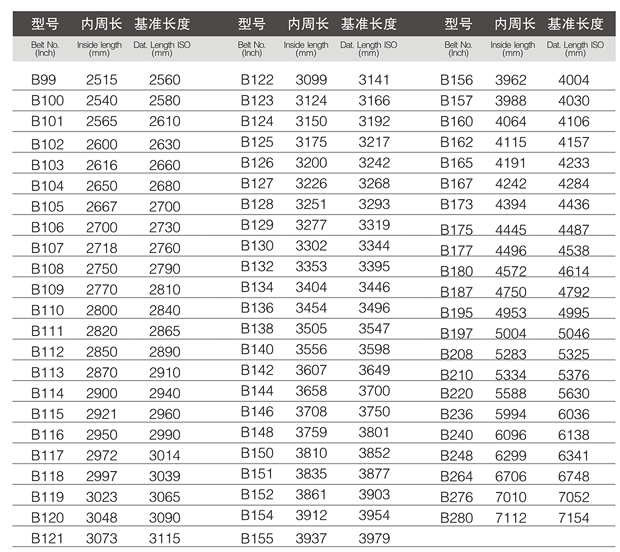

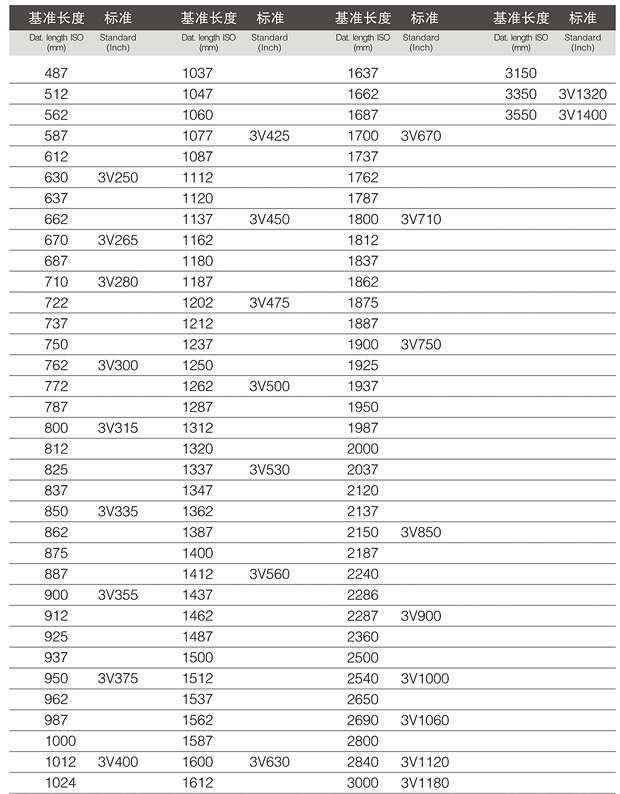

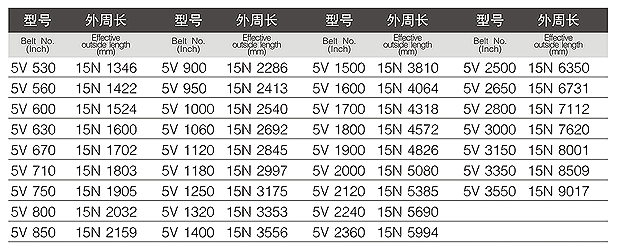

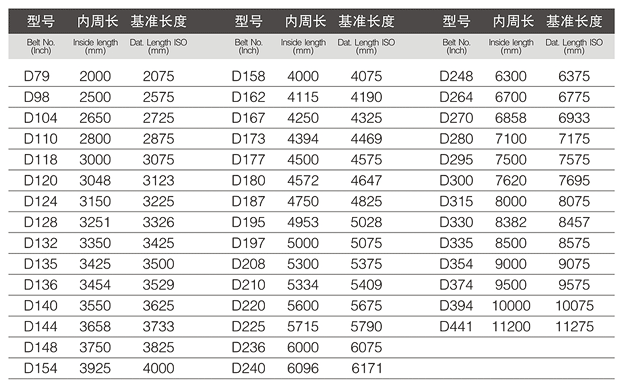

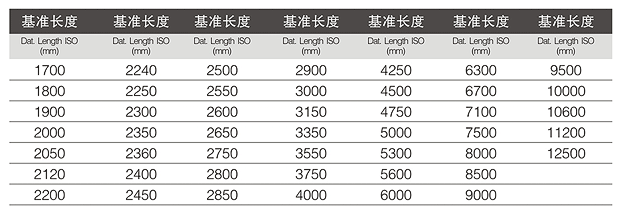

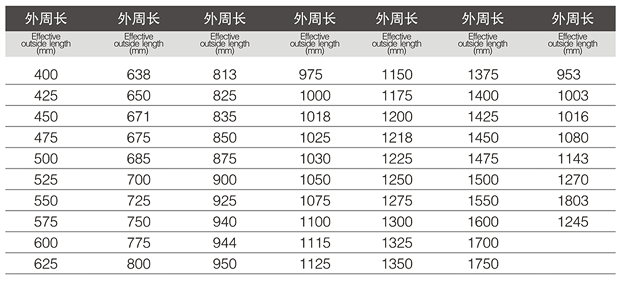

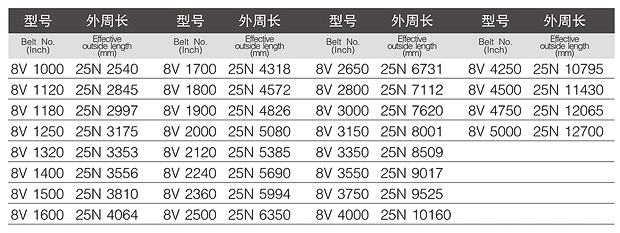

Type & Size

M/9.5 A/13 A/13 B/17 B/17 C/22 C/22 D/32 E/38 SPZ(3V) SPA SPB(5V) SPC 3V(9N) 5V(15N) 8V(25N)
