The transmission of synchronous belt is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley, lt combines respective advantages of gear transmission,chain tramission and transmission.

Structure No. Name Function Material 1 Top Rubber Protect the linling tensile member CR HNBR 2 Tensile Member Core material to pass the dynamic force Glass Filber 3 Teeth Rubber Protect the tensile member and maintain the shape of the rubber CR HNBR 4 Teeth Fabric Maintain the shape of the adhesive Elastic Fabric Feature lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear. Glass fiber as tensile member.no elongation of rubber belt. Excellent heat-resistance,oil-proof,and wearing resistance Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature. lts performance can be exerted stably and safely during the process of high-speed rotation. Section Size Synchronous Belt for Automobile Type Pitch(mm) Tooht Height（mm） Belt height (mm) ZA 9.525 1.91 4.10 ZB 9.525 2.92 4.50 ZH 9.525 3.50 5.50 YH 8.00 3.04 5.20 ZR 9.525 3.20 5.70 YS 8.00 2.00 5.10 ZS 9.525 3.53 5.70 YA 8.00 2.95 5.20 ZAS 9.525 2.32 4.62 ZBS 9.525 2.76 5.06 S8M(YU) 8.00 3.05 5.30 FS 9.525 3.05 5.35 MY 8.00 3.06 5.20 MR 9.525 3.54 5.69 RU 9.525 3.41 5.40 ZLB 9.525 2.70 5.05

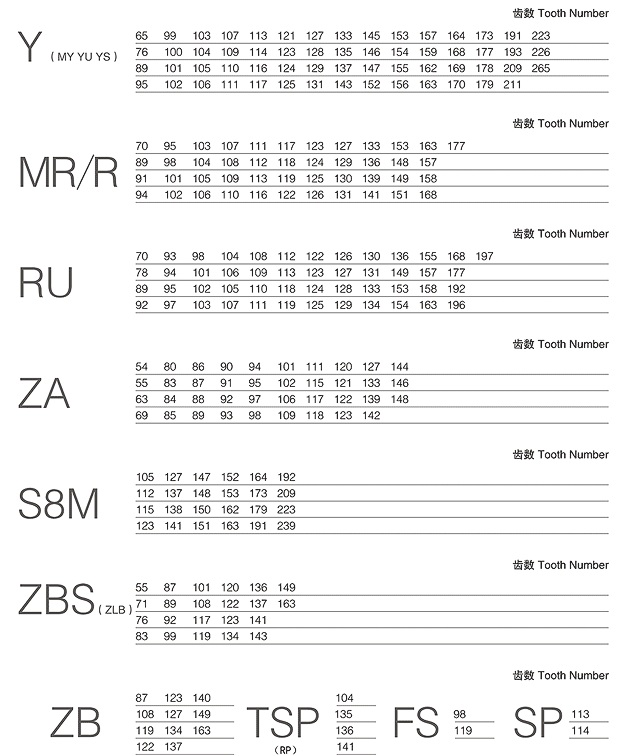

Type & Size
