Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.

产品特点

V-Ribbed Belts结构 No Name Function Material 1 Top Fabric Protect the lining tensile member Polyester Cotton Canvas 2 Buffer Rubber Suport adn protect the adhesive force of the tensile member CR, EPDM 3 Tensile Member Critical material to pass the dynamic force Polyester, Nylon 4 Bottom Rubber Maintain the shape of the rubber and improve its side compression performance CR, EPDM Feature Wide breadth but thin belt, excellent elastic and flexural property High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc. Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation Excellent heat-resistance, oil-proof, and wearing resistance Less slip while large transmission effect during the process of operation Less noise during the process of operation Size of Section Type Ribsection(mm) Angle of rib(o) Belt Thickness(mm) Rib Numbers Length range PH 1.6 40 3 3-54 540-1270 PJ 2.34 40 4 3-36 540-18880 PK 3.56 40 4-6 3-23 600-2400 PL 4.7 40 10 3-16 900-3000 PM 9.4 40 17 3-8 1500-3000

Type & Size

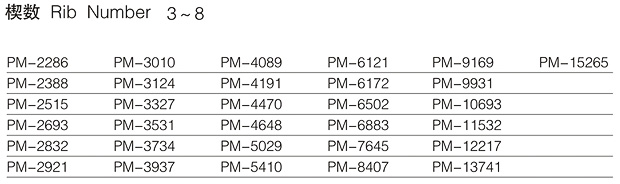

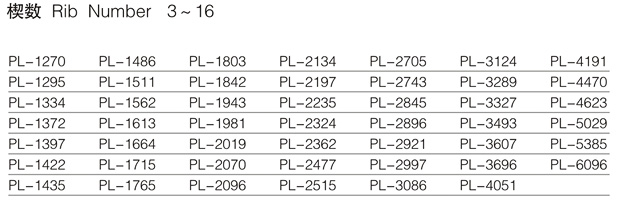

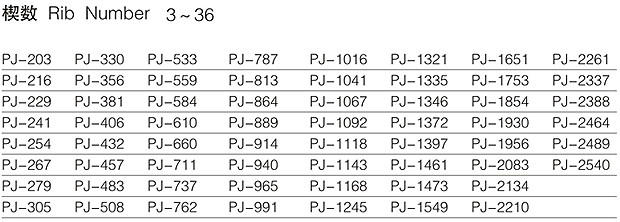

Type: PJ 203-2540 Type: PK 203-2540 Type: PL 203-2540  Type: PM 2286-15265
